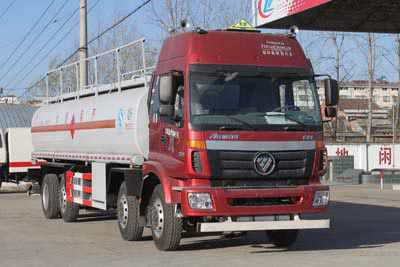

22 cubic meter Euro IV Auman front four rear six fuel tanker truck
Fast Delivery
12-16 Weeks
12-16 Weeks
5-Year Warranty
Comprehensive
Comprehensive
24/7 Support
Dedicated Team
Dedicated Team
Product Parameters
| 【Main Technical Parameters】 | |||
| Product Trademark | Chengliwei brand | Announcement batch | 275 |
| Product Name | fuel truck | Product Model | CLW5310GJYB4 fuel truck |
| Total mass (kg) | 31000 | Tank volume (m3) | 22.3 |
| Rated load capacity (Kg) | 17650,17715 | External dimensions (mm) | 11875×2500×3410 |
| Curb weight (kg) | 13155 | Cargo box dimensions (mm) | ×× |
| Rated passenger capacity (persons) | Permitted gross vehicle weight (kg) | ||
| Number of passengers allowed in the driver's cab (persons) | 3,2 | Load capacity utilization factor | |
| Approach angle/departure angle (°) | 12/14 | Front overhang/rear overhang (mm) | 1555/2410 |
| Number of axes | 4 | Wheelbase (mm) | 1860+4700+1350 |
| Axle load (Kg) | 6500/6500/6500/11500 | Maximum speed (km/h) | 80 |
| other | Notes: Transport medium: diesel, gasoline, densities: 830 kg/m³, 750 kg/m³ respectively, class item number: 3; effective tank volume: 22.3 m³; tank dimensions (length/major axis/minor axis) (mm): 9000/2370/1570; cab optional with chassis; this vehicle can be equipped with a refueling pump device model/manufacturer: 80YHCB-60, 60YHCB-30/Suizhou Yifeng Pump Industry Co., Ltd.; 80YHCB-60, 60YHCB-30F/Shandong Boshan Qilu Oil Pump Factory; protective material: Q235A carbon steel; connection method: left and right sides and lower rear protection are all welded connections; rear protection cross-section dimensions (mm): 120×50; rear protection ground clearance (mm): 450. The vehicle is equipped with a driving recorder with satellite positioning function, and the chassis used is an oil tanker chassis; ABS manufacturer/model: 44600XXXX0/WABCO Automotive Control Systems (China) Co., Ltd. | ||
| Chassis Technical Specifications | |||
| Chassis Model | BJ5312GYY-XA | Chassis Name | oil tanker chassis |
| Trademark Name | Auman brand | manufacturing enterprises | Beijing Foton Daimler Automotive Co., Ltd. |
| External dimensions (mm) | 11875×2460×3410,2900 | Number of tires | 10 |
| Approach angle/departure angle (°) | 12.5/9 | Tire specifications | 11.00R20,10.00R20,11R22.5,12R22.5 |
| Number of leaf springs | 10/10/-/9+6 | Front track width (mm) | 1960/1960 |
| Fuel types | diesel fuel | Rear track width (mm) | 1955/1847 |
| Emission standards | GB17691-2005 Country IV, GB3847-2005 | ||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) |
| SC9DK310Q4 SC9DK270Q4 ISDe270 40 |
Shanghai Diesel Engine Co., Ltd. Shanghai Diesel Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
8820 8820 6700 |
228 199 198 |
