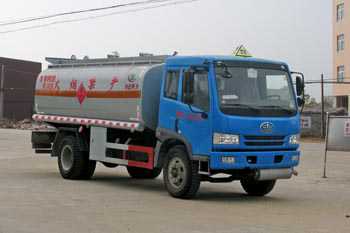

14 cubic meter Jiefang single-axle oil tanker

Product Parameters

【Main Technical Parameters】
Product Trademark	Chengliwei brand	Announcement batch	280
Product Name	oil tanker	Product Model	CLW5160GYYC4 type oil tanker
Total mass (kg)	16000	Tank volume (m3)	13.94
Rated load capacity (Kg)	9300, 9365	External dimensions (mm)	8000, 7800×2450×3000
Curb weight (kg)	6505	Cargo box dimensions (mm)	××
Rated passenger capacity (persons)		Permitted gross vehicle weight (kg)
Number of passengers allowed in the driver's cab (persons)	3,2	Load capacity utilization factor
Approach angle/departure angle (°)	18/12, 18/11	Front overhang/rear overhang (mm)	1330/2170, 1330/2220
Number of axes	2	Wheelbase (mm)	4250, 4500
Axle load (Kg)	6000/10000	Maximum speed (km/h)	79
other	Note: This vehicle is equipped with an optional cab along with the chassis. Tank volume: 13.94 cubic meters, medium: gasoline, class number: 3, density: 0.7 tons/cubic meter. Overall vehicle length (mm): 8000, corresponding tank dimensions (length × major axis × minor axis) (mm): 5300 × 2350 × 1550, corresponding wheelbase (mm): 4500; Overall vehicle length (mm): 7800, corresponding tank dimensions (length × major axis × minor axis) (mm): 5100 × 2400 × 1580, corresponding wheelbase (mm): 4250. An elliptical tank is optional, but the tank dimensions remain the same. Protective material: Q235A carbon steel; Connection method: Welded connection for both left and right sides and lower rear; Rear protection cross-section dimensions (mm): 100×50; Rear protection ground clearance (mm): 500; Front wheels are equipped with disc brakes and a speed limiter, limiting the speed to 79km/h; ABS anti-lock braking system manufacturer: Changchun Kemi Automotive Braking Co., Ltd., Model: CM4XL; This vehicle is equipped with a driving recorder with satellite positioning function, and uses BF4M2012-16E4 and BF4M2012-14E4 engines, with corresponding fuel consumption values of 27.4 L/100km. It uses radial tires and a chassis with ABS.
Chassis Technical Specifications
Chassis Model	CA1163P9K1L2E4	Chassis Name	Flat-head diesel truck chassis
Trademark Name	Liberation brand	manufacturing enterprises	China FAW Group Corporation
External dimensions (mm)	7726,7356×2349×2695	Number of tires	6
Approach angle/departure angle (°)	29/13, 29/16	Tire specifications	9.00-20, 9.00R20, 9R22.5
Number of leaf springs	11/7+6, 3/7+6	Front track width (mm)	1800
Fuel types	diesel fuel	Rear track width (mm)	1800
Emission standards	GB3847-2005, GB17691-2005 Country IV
Engine Model	Engine manufacturers	Displacement (ml)	Power (kW)
BF4M2012-16E4 BF4M2012-14E4	China FAW Group Corporation	4040 4040	121 106
