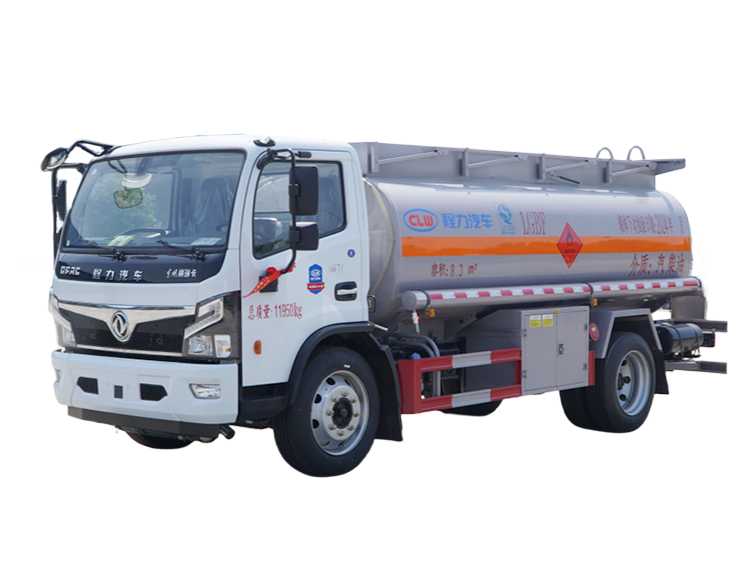

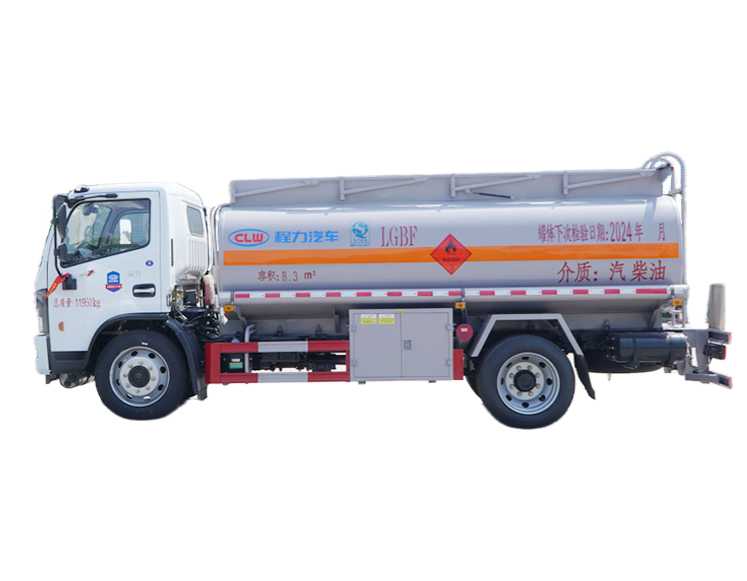

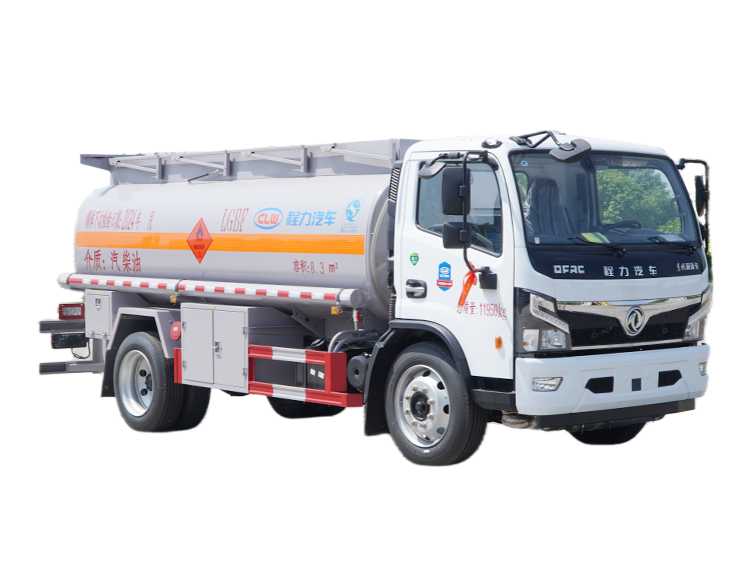

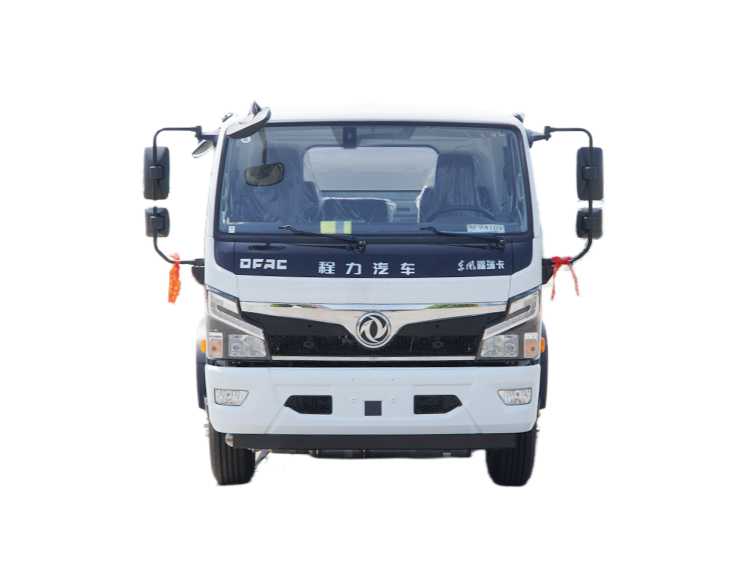

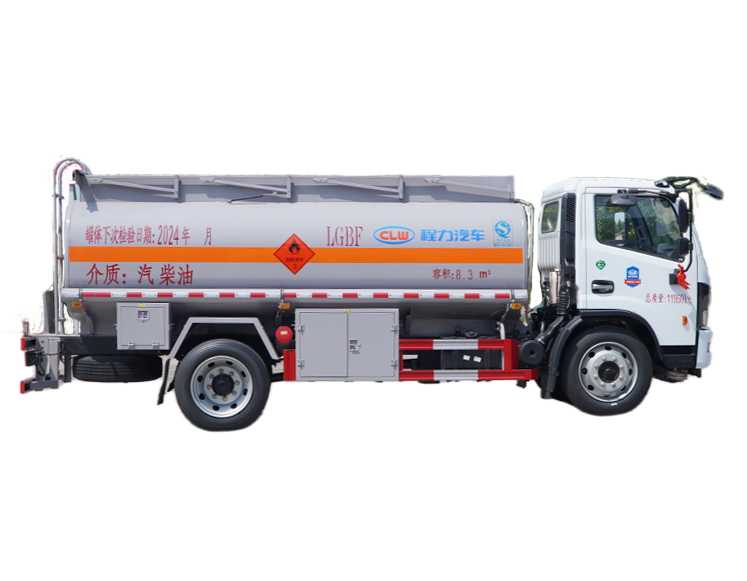

Dongfeng Dolica tanker truck

I. Vehicle Configuration

1. Overall vehicle dimensions: 6950×2400×2800mm

2. Total weight: 11950kg

3. Rated weight: 6720, 6785 kg

4. Curb weight: 5035kg

5. Wheelbase: 3800mm

6. Tire specifications: 245, 70R19.5 16PR, 8.25R20, 255, 70R22.5 16PR, 9R22.5, 8.25R20 16PR, 9R22.5 14PR

7. Emission Standard: China VI

8. Structural Model: EQ1125SJ8CDCWXP

9. Engine Model: CY4SK261

10. Power: 125kw

11. Fast 8-speed 3.5T front axle, 6T rear axle, 192 double-layer beam, power steering, clutch booster, exhaust brake, air brake, air conditioning, power windows and central locking.

II. Upper Structure Configuration

1. Strictly manufactured according to the announced volume of 8.3 cubic meters, using Q235B steel plates, with a 4.5mm thick cylinder, 5mm thick end caps, and 3.5mm thick partitions. It is a single-compartment tank with a first European standard tank opening on the top, one bottom valve, and comes with 60 and 30 dedicated oil pumps (capable of pumping in and out), a high-flow refueling machine, and a 15-meter thickened hose reel and nozzle. It meets European standards, and includes a rear ladder, manual guardrail, toolbox, rear bumper, and side guardrails. It is manufactured according to the new 2021 standards and includes other standard equipment from other manufacturers. Construction permits, vehicle certificates, and registration invoices are provided.
