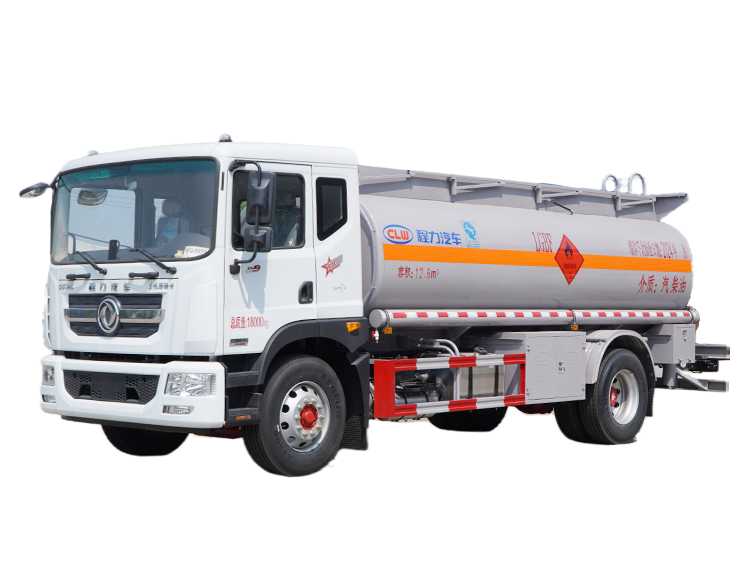

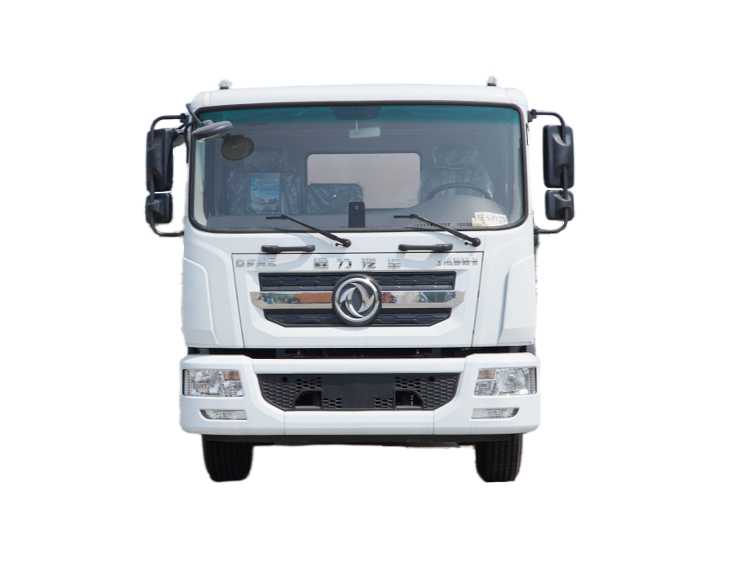

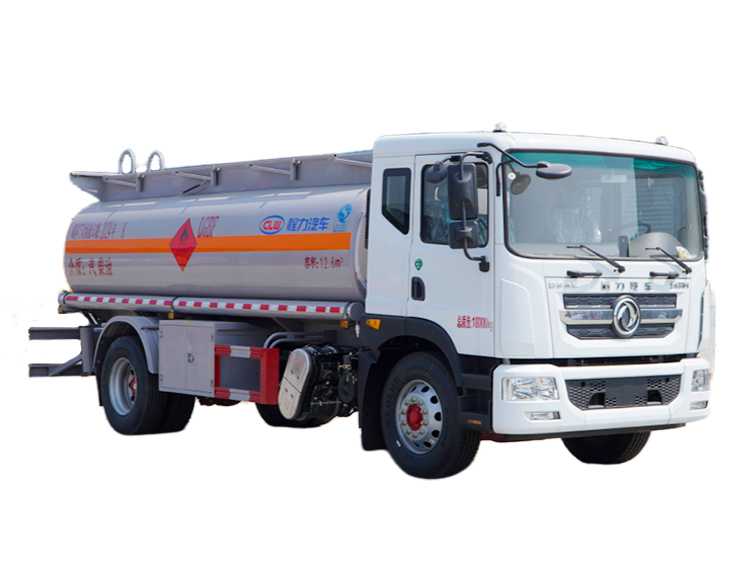

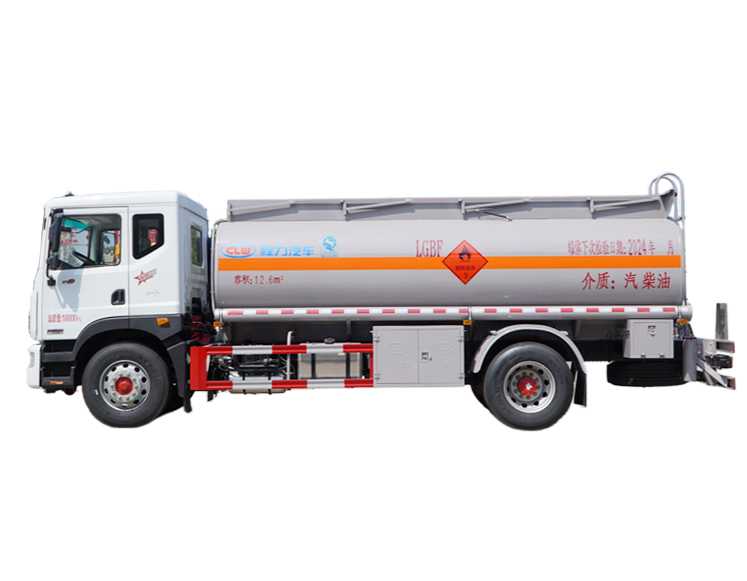

Dongfeng D9 oil tanker truck

I. Vehicle Parameters

1. Vehicle Model: CL5180GYYL6

2. Chassis Model: EQ1185L9CDFWXP

3. Engine model: D4.5NS6B220

4. Overall vehicle dimensions: 8330×2500×3300mm

5. Total weight: 18000kg

6. Rated weight: 11000, 11065, 11200, 11265 kg

7. Curb weight: 6805 kg, 6605 kg

8. Wheelbase: 4700mm

9. Tire specifications: 295/80R22.5 18PR, 10.00R20 18PR, 275/80R22.5 18PR

10. Emission Standards: GB3847-2005, GB17691-2018 China VI

11. Power: 162kW

II. Upper Assembly Parameters

1. Announced floor area ratio: 12.6 cubic meters

2. Effective tank volume: 13 cubic meters

3. Tank body: Q235B steel plate, 5mm thick cylinder, 5mm thick end caps, 5mm thick partitions, single compartment, one tank opening on the top, fully European standard, one bottom valve with automatic shut-off device, equipped with 80 and 60 dedicated oil pumps (pump in and pump out), high-flow refueling machine and 15-meter thickened hose reel and nozzle, rear ladder, manual guardrail, toolbox, rear bumper, side guardrails, manufactured according to the new standard, other standard configurations, and a medium tank inspection report can be provided.
