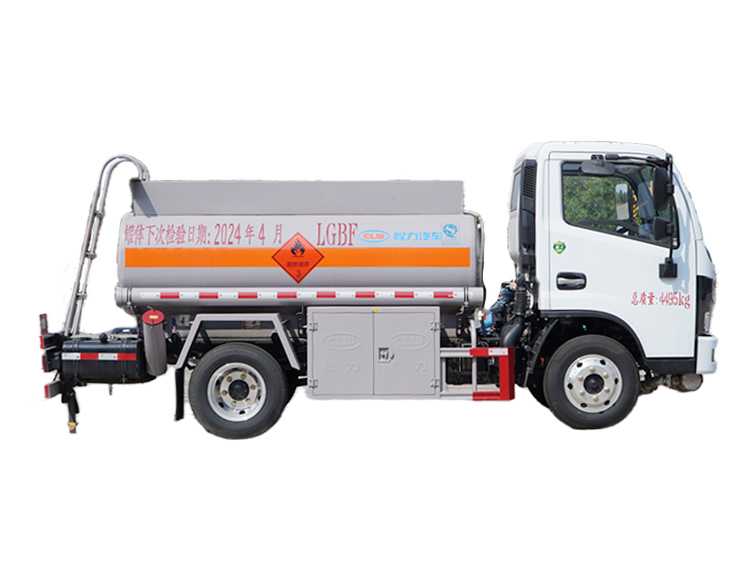

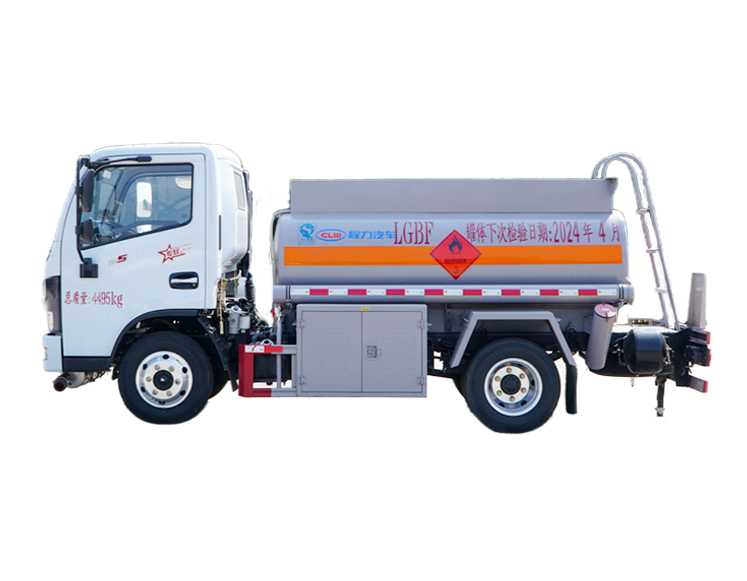

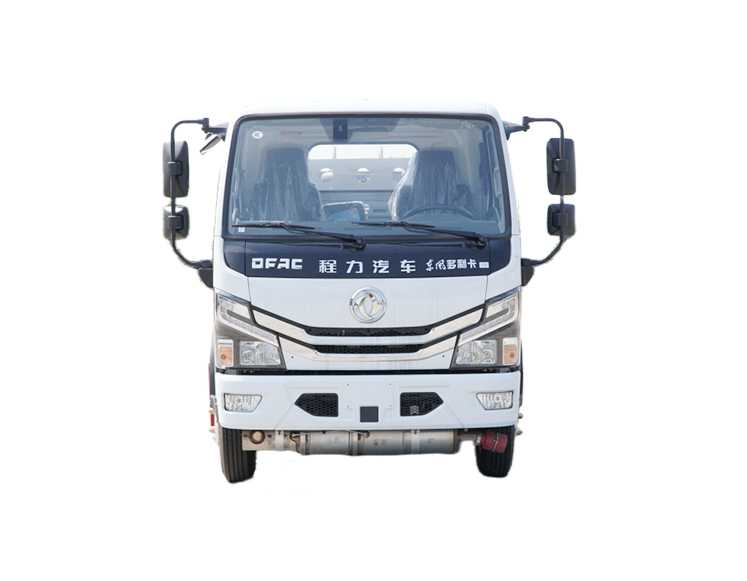

Dongfeng D5 Dolica tanker truck

I. Vehicle Parameters

1. Model number in the announcement: CL5040GJY6BWG

2. Chassis Model: EQ1045SJ3CDCWXP

3. Engine models: Q23-132E60, Q23-115E60

4. Total weight: 4495kg

5. Curb weight: 2895kg

6. Rated weight: 1470kg

7. Power: 85, 97 kW

8. Wheelbase: 2700mm

9. Emission Standard: GB17691-2018 China VI

10. Vehicle dimensions: 5280×2000×2250mm

11. Fuel: Diesel

12. Maximum speed: 80 km/h

13. Tire specifications: 6.50R16LT 10PR

II. Upper Structure Configuration

1. Made of Q235 carbon steel plate, according to national standard thickness, single compartment, with overflow valve pump, pump inlet and pump outlet, two European standard tank openings, one bottom valve, with voice prompt alarm device, one set of bottom loading oil and oil vapor recovery (right side), reserved space for fuel dispenser on the left side, one toolbox, two oil delivery pipes, two fire extinguishers, and the rest are made according to standard configuration.
