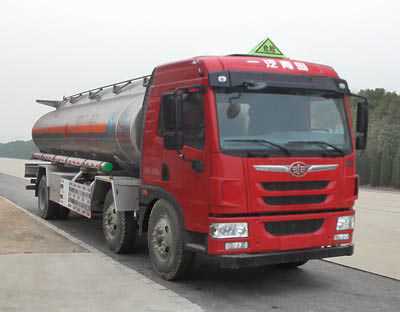

National V emission standard Jiefang small three-axle aluminum alloy oil tanker

Product Trademark

Chengliwei brand

Announcement batch

282

Product Name

Aluminum alloy oil tanker

Product Model

CLW5250GYYLC5 type aluminum alloy oil tanker

Total mass (kg)

25000

Tank volume (m3)

24.2

Rated load capacity (Kg)

16135, 16200

External dimensions (mm)

10200,9200 ×2500×3500

Curb weight (kg)

8670

Cargo box dimensions (mm)

××

Rated passenger capacity (persons)

Permitted gross vehicle weight (kg)

Number of passengers allowed in the driver's cab (persons)

3,2

Load capacity utilization factor

Approach angle/departure angle (°)

17/12

Front overhang/rear overhang (mm)

1332/2268, 1332/1968

Number of axes

3

Wheelbase (mm)

1900+4000, 1900+4700

Axle load (Kg)

6750/6750/11500

Maximum speed (km/h)

80

other

Note: This vehicle is suitable for transporting dangerous goods. The transport medium is gasoline, with a density of 0.7 tons/cubic meter, class number 3. The effective tank volume is 24.2 cubic meters. The overall vehicle length/wheelbase/front overhang/rear overhang/tank dimensions (length × major axis × minor axis) (mm) correspond to: 10200/1900+4700/1332/2268/7600×2480×1780; 9200/1900+4000/1332/1968/6600×2500×1980. A flat-top cab is optional with the chassis. Protective material: Q235A carbon steel; connection method: welded connections are used for the left and right sides and the lower rear protection; rear protection cross-section dimensions (mm): 135×50; rear protection ground clearance (mm): 520. This vehicle uses only radial tires and a chassis with ABS; it has disc brakes on the front wheels, a front-mounted exhaust pipe, and a speed limiter set at 80 km/h. It is equipped with a driving recorder with satellite positioning functionality. ABS manufacturer/model: Shanghai Wanjie Automotive Control System Co., Ltd./VIEABS-II. The tank color and text spraying position are variable.

Chassis Technical Specifications

Chassis Model

CA1250PK2L5T3BE5A80

Chassis Name

Flat-head diesel truck chassis

Trademark Name

Liberation brand

manufacturing enterprises

China FAW Group Corporation

External dimensions (mm)

8932,9982 ×2490×2830,2990,3590

Number of tires

8

Approach angle/departure angle (°)

22/10

Tire specifications

10.00-20, 10.00R20

Number of leaf springs

12/12/10+9

Front track width (mm)

1914/1914, 1922/1922

Fuel types

diesel fuel

Rear track width (mm)

1860

Emission standards

GB17691-2005 Country V, GB3847-2005

Engine Model

Engine manufacturers

Displacement (ml)

Power (kW)

BF6M2012-22E5

CA6DLD-22E5

FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Plant

China FAW Group Corporation

6060

6600

165

164
