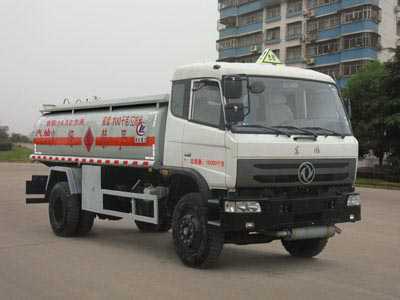

14 cubic meter Dongfeng oil tanker

Product Parameters

【Main Technical Parameters】
Product Trademark	Chengliwei brand	Announcement batch	279
Product Name	oil tanker	Product Model	CLW5160GYYT4 type oil tanker
Total mass (kg)	16000	Tank volume (m3)	14.3
Rated load capacity (Kg)	9540	External dimensions (mm)	9000, 8600, 8400 × 2490 × 3100
Curb weight (kg)	6265	Cargo box dimensions (mm)	××
Rated passenger capacity (persons)		Permitted gross vehicle weight (kg)
Number of passengers allowed in the driver's cab (persons)	3	Load capacity utilization factor
Approach angle/departure angle (°)	26/15	Front overhang/rear overhang (mm)	1250/2650
Number of axes	2	Wheelbase (mm)	4500, 4700, 5100, 3650, 3800, 3950, 4100, 5600
Axle load (Kg)	6000/10000	Maximum speed (km/h)	75
other	Notes: Transported medium: gasoline; Medium density: 700 kg/m³; Class item number: 3; Effective tank volume: 14.3 m³; Overall vehicle length (mm): 9000, corresponding wheelbase (mm): 5100, corresponding tank dimensions (length/major axis/minor axis) (mm): 6100/2350/1450; Overall vehicle length (mm): 8600, corresponding wheelbase (mm): 4700, corresponding tank dimensions (length/major axis/minor axis) (mm): 5800/2350/1500; Overall vehicle length (mm): 8400, corresponding wheelbase (mm): 4500, corresponding tank dimensions (length/major axis/minor axis) (mm): 5600/2350/1580. Optional elliptical tank body, tank dimensions remain unchanged. Cab options (new style of doors/bumpers/lights, etc.) are available with the chassis. Protective material: Q235A carbon steel; Connection method: Welded connection for both left and right sides and lower rear; Rear protection cross-section dimensions (mm): 120×50×5; Rear protection ground clearance (mm): 400. The vehicle is equipped with disc brakes on the front wheels and a speed limiter, limiting the speed to 75km/h. The vehicle is equipped with a driving recorder with satellite positioning function. It is fitted with radial tires and a chassis with ABS. ABS system controller model: 3631010-C2000; ABS manufacturer: Dongfeng Electronic Technology Co., Ltd. Braking System Company. This vehicle is only available with the following engines: YC6J180-42, ISDe180 40, ISDe185 40, ISB180 40, ISB210 40, YC6J180-46, YC4EG180-40, YC4E160-42, CA4DF4-15E4, ISB170 40, ISDe245 40, and YC4E160-45. The corresponding fuel consumption values (L/100km) are: 27.2, 27.3, 27.1, 27.1, 27.3, 27.3, 27.4, 27.4, 27.4, 27.2, and 27.2.
Chassis Technical Specifications
Chassis Model	EQ1168GLJ3	Chassis Name	Cargo truck chassis
Trademark Name	Dongfeng brand	manufacturing enterprises	Dongfeng Motor Corporation
External dimensions (mm)	8300, 8500, 8900, 7250 9000×2462×2740,2850,2950	Number of tires	6
Approach angle/departure angle (°)	30/26	Tire specifications	10.00-20 16PR,10.00R20 16PR,9.00R20,9.00-20
Number of leaf springs	9/11+8, 8/10+8, 8/11+8, 9/10+8	Front track width (mm)	1900, 1940, 1750
Fuel types	diesel fuel	Rear track width (mm)	1800, 1860, 1750
Emission standards	GB17691-2005 Country IV, GB3847-2005
Engine Model	Engine manufacturers	Displacement (ml)	Power (kW)
YC6J180-42 ISDe180 40 ISDe185 40 ISB180 40 ISB210 40 YC6J180-46 YC4EG180-40 YC4E160-42 CA4DF4-15E4 ISB170 40 ISDe245 40 YC4E160-45 YCD4J2S-150	Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Plant Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Power Machinery Co., Ltd.	6500 4500 6700 5900 5900 6494 4730 4260 4750 5900 6700 4260 4329	132 136 136 132 155 132 132 118 112 125 180 118 110
