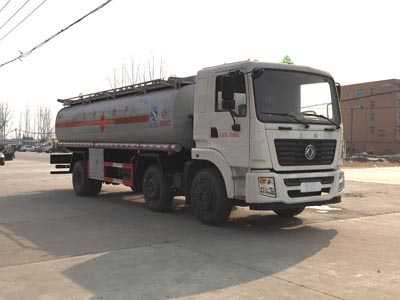

National V emission standard Dongfeng small three-axle oil tanker

Product Trademark

Cheng Liwei Brand

Announcement Batch

283

Product Name

Oil tanker

Product Model

CLW5250GYYD5type oil tanker

Total mass (Kg)

25000

Tank volume (m³)

21.2

Rated load capacity (Kg)

14195

Dimensions (mm)

10715×2500×3250

Weight (kg)

10610

Cargo box dimensions (mm)

××

Seating Capacity (People)

Total mass of trailer (Kg)

Number of persons allowed in the cab (people)

3

Utilization coefficient of load capacity

Approach Angle/Departure Angle (°)

15/13

Front overhang/Rear overhang (mm)

1515/3000

Number of Axes

3

Wheelbase (mm)

1950+4250,1950+4550,2150+5150

Load Capacity (Kg)

7000/7000/11000

Maximum speed (Km/h)

80

Other

Notes: 1. This vehicle is suitable for hazardous material transport, transport medium: gasoline, density: 700 kg/m³; category number: 3, tank effective volume: 21.2 m³, tank dimensions (length × major axis × minor axis) (mm): 7900 × 2280 × 1580. 2. Protection material: Q235A carbon steel, connection method: welding connection for both left and right side protection as well as rear protection, rear protection cross-sectional dimensions (mm): 120 × 50, rear protection ground clearance (mm): 510. 3. Only uses chassis radial tires and chassis with ABS; the vehicle's front wheels are equipped with disc brakes, has a front-mounted exhaust pipe, and is equipped with a speed limiter, with a speed limit of 80 km/h. Equipped with a driving recorder with satellite positioning function. ABS manufacturer: Dongkeknoll Commercial Vehicle Braking System (Shiyan) Co., Ltd.; model: 3631010-C2000. 4. Tank color and text spray position can be changed. 5. Engine model ISD210 50, YC6JA220-50 fuel consumption values correspond to (L/100km): 34.0, 34.4.

【Chassis Technical Parameters】

Chassis Model

EQ1250GSZ5DJ

Chassis Name

Truck Chassis

Trademark Name

Dongfeng Brand

Manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Dimensions (mm)

11765,10965,10665×2470×2980

Tire Count

8

Approach Angle / Departure Angle (°)

29/21

Tire Size

10.00-20,10.00R20,295/80R22.5

Number of leaf springs

9/9/10+8,10/10/10+8

Front track width (mm)

1940/1940

Fuel Type

Diesel

Track width (mm)

1860

Emission Standards

GB17691-2005National V,GB3847-2005

Engine Model

Engine Manufacturer

Displacement (ml)

Power (Kw)

ISD210 50

YC6JA220-50

East Wind Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd.

6700

6870

155

162
