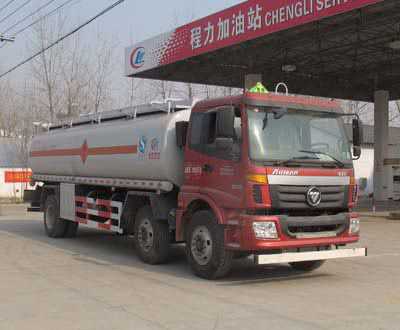

18 cubic meter Euro IV Auman small three-axle fuel truck
Fast Delivery
12-16 Weeks
12-16 Weeks
5-Year Warranty
Comprehensive
Comprehensive
24/7 Support
Dedicated Team
Dedicated Team
Product Parameters
| 【Main Technical Parameters】 | |||
| Product Trademark | Chengliwei brand | Announcement batch | 275 |
| Product Name | fuel truck | Product Model | CLW5250GJYB4 fuel truck |
| Total mass (kg) | 25000 | Tank volume (m3) | 18.4 |
| Rated load capacity (Kg) | 14565,14630 | External dimensions (mm) | 10340×2480×3380 |
| Curb weight (kg) | 10240 | Cargo box dimensions (mm) | ×× |
| Rated passenger capacity (persons) | Permitted gross vehicle weight (kg) | ||
| Number of passengers allowed in the driver's cab (persons) | 3,2 | Load capacity utilization factor | |
| Approach angle/departure angle (°) | 15/11 | Front overhang/rear overhang (mm) | 1365/2315 |
| Number of axes | 3 | Wheelbase (mm) | 1860+4800 |
| Axle load (Kg) | 6750/6750/11500 | Maximum speed (km/h) | 79 |
| other | Notes: Effective tank volume: 18.4 cubic meters; medium: gasoline or diesel; class number: 3; density: 0.83 tons/cubic meter. Tank dimensions (length × major axis × minor axis) (mm): 7660 × 2280 × 1580. Protective material: Q235A carbon steel; connection method: left and right side protection is welded, rear lower protection is bolted; cross-sectional dimensions (mm): 110 × 50; rear protection ground clearance (mm): 470. This vehicle can be equipped with Bolai, Zhengxing, Hengshan, and Huatai brand CNC fuel dispensers, with corresponding models SKDS-2001A, SC20D1110F, HS1812B, and HT-YV60E, manufactured by Shanghai Bolai Machinery Co., Ltd., Zhengxing Technology Co., Ltd., Token Hengshan Technology (Guangzhou) Co., Ltd., and Suizhou Huatai Special Equipment Co., Ltd. Equipped with a speed limiter, limiting speed to 79 km/h. Radial tires only. Chassis with front-mounted exhaust pipes only. Chassis with front disc brakes and ABS only. ABS system controller model: ABS-E, 3550X-1010; ABS system controller manufacturer: WABCO Automotive Control Systems (China) Co., Ltd., Dongfeng Electronic Technology Co., Ltd. | ||
| Chassis Technical Specifications | |||
| Chassis Model | BJ5253GYY-XA | Chassis Name | oil tanker chassis |
| Trademark Name | Auman brand | manufacturing enterprises | Beijing Foton Daimler Automotive Co., Ltd. |
| External dimensions (mm) | 10225, 10435×2330, 2490×2800, 3380 | Number of tires | 8 |
| Approach angle/departure angle (°) | 18/12 | Tire specifications | 10.00R20 18PR,11.00-20,11.00R20,12R22.5 |
| Number of leaf springs | 10/10/10+9, 10/10/9+6 | Front track width (mm) | 1890/1890, 1940/1940 |
| Fuel types | diesel fuel | Rear track width (mm) | 1847 |
| Emission standards | GB17691-2005 Country IV,GB3847-2005 | ||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) |
| ISDe210 40 ISDe245 40 ISDe185 40 IE6D210-e4ES ISB210 40 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Tianjin Lovol Power Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 6700 6700 6700 5990 5900 | 155 180 136 154 155 |
